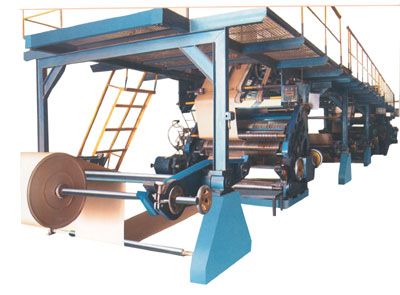

AUTOMATIC 3/5 PLY PAPER CORRUGATED BOARD MAKING PLANT

For corrugators, who want superior quality boards and higher production, on line 3/5 ply corrugated boards making plants is the only solution. On line corrugated boards making plants are ideal solution for achieving higher production capacity and superior board quality. Reduces production cost manifold. "P I C" offer ultra modern on line 3/5 ply paper corrugated board making plants assured quality with unmatched service back up.

5 ply corrugated  box making plant

3 ply corrugated box making plant

• High Speed bearing mounted corrugation Machine
  with variable speed drive -2 nos.
• Drum type heaters-4 nos.
• Self loading reel stand -5  nos.
• Triplex heating unit before gluing
• On line duplex pasting unit
• Heating,  cooling and drying chamber (consist of  fourteen hot plates)
• Heavy duty pull unit
• On line creasing and slitting unit
• Heavy duty cut off unit

• High sped bearing mounted corrugation Machine with variable speed drive
• Drum type heaters-2 nos.
• Self loading reel stand-3 nos.
• Duplex heating unit before gluing
• On line simplex pasting unit
• Heating, cooling and drying chamber (consist of nine hot plates)
• Heavy duty pull unit
• On line creasing and slitting unit
• Heavy duty cut off unit

The plants above include complete fabrication and synchronization of all machines together. Overhead bridge and
conveyor take up belts. Motorized web adjustment unit, Gangway and stairs.
