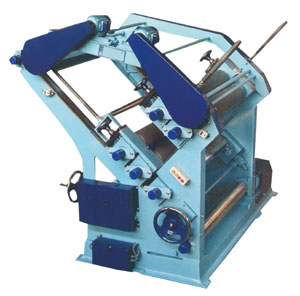

Double Profile Single Face Corrugation Machine

Double Profile Single Face Corrugation Machine with bearing mounted rolls. Saves precious space in factory
Machine in supplied with two sets of any two types of flute roll
Immediate & trouble-free change over of fluting medium in just five minutes
Motorized lifting & lowering of fluting roll assembly.
The machine is recommended to be used on steam heating or thermic fluid heating.
Technical Specification
Size Motor H.P. Steam Req. Kg./Hr. Wt. App. (MT.) Floor Space Max. Output RFT/Min.
42" 7.5 200 5.0 7.0'x16' 130
52" 10.0 300 5.5 8.5'x16' 130
62" 10.0 300 6.0 9.5x16' 130
72" 10.0 400 6.5 10'x17' 130
84" 15.0 400 7.5 11'x18' 130
