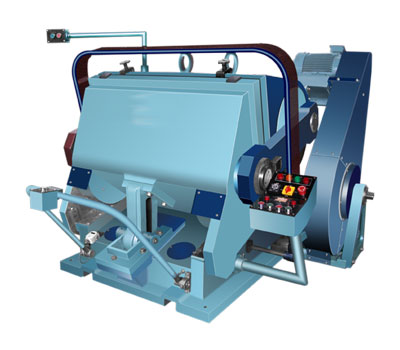

Die Cutting, Creasing & Embossing Platen

Platen Die Punching is designed for heavy jobs of Cutting, Creasing and Embossing of Paper, Linoleum, Card Board, Corrugated Board, Plastic & PVC material etc. Machine is with Electro-megnetic Clutch & Brake, Dwell Timing Device, Electric Impression Counter, Safety guards for operator's safety, Circuit Locking & Circuit Breaker.
Technical Specification
Size Platen Size Impr per hr. Power (H.P.) Floor Space Wt Appr. M.T.
20" x 26" 23" x 29" 2000 3.0 60" x 45" 2.7
20" x 30" 23" x 33" 2000 3.0 60" x 51" 3.0
22" x 32" 25" x 35" 1800 5.0 62" x 53" 3.4
25" x 37" 28" x 40" 1800 5.0 65" x 55" 4.0
32" x 42" 36" x 46" 1500 7.5 70" x 68" 5.5
36" x 50" 40" x 54" 1200 7.5 77" x 75" 7.5
42" x 62" 46" x 66" 1000 10.0 84" x 90" 10.0
48" x 68" 52" x 72" 900 15.0 88" x 98" 11.5
51" x 81" 55" x 85" 700 15.0 94" x 121" 15.5
