Combined Rotary Creasing, Slotting & Slitting Machine

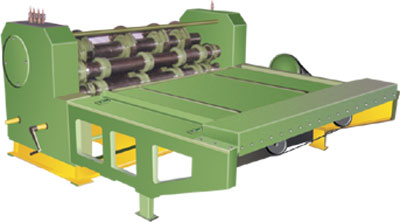

This machine is used for cutting, creasing, slotting and corner cutting of corrugated board simultaneously. Four creasing, two side cutting three slotting and one corner cutting heads are provided. The machine has a chain delivery arrangement. Slot depth is 12 inches. Maximum output is 60 inches sheets per minute.
Technical Specification
Size Motor H.P. Sheet Feed Max. Sheet Feed Min. Floor Space
75" 3.0 48"x70" 15"x26" 10'x14'
85" 3.0 48"x80" 15"x26" 10'x15'
95" 3.0 48"x90" 15"x26" 10'x16'
